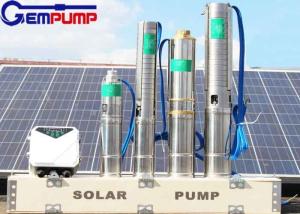

Brushless 5500W Solar Deep Well Submersible Pump 220V 380V

5500 Watt 220V 380V Agriculture Brushless Submersible Deep Water Well Solar Pump

Gempump Deep Well Solar Pump Applications

1. Gempump Hybrid AC/DC Solar Submersible Pumps are fitted with a permanent magnet, brushless motor, Which enables the efficient use of energy from a wide range of supply options.
2. The pump system offers the perfect water supply solution in remote areas where water is scarce and the power supply is non-existent or unreliable.
3. The structure of motor with double shields poses no pollution risk to drinking water.
4. The integrated control system is built inside the motor to make it more compatible and reliable, while offering the MPPT function-Maximum Power Point Tracking, maximizing the utilization of power generated from the photovoltaic generator.

Gempump Solar Pumps Characteristic

1. Water-cooled motor, safe and poses no pollution risk to drinking water.
2. Advanced brushless dc motor, saving energy and offering maximum efficiency.
3. Motor-Built-in, integrated controller, with MPPT and DSP Technology,offering the easiest and simplest installation.
4. Intelligent frequency conversion algorithm, maximizing efficiency and saving energy.
5. A high degree of flexibility with regards to power supply and power range,offering a wide range of power sources to choose from.
6. Can be powered from the mains and/ or power generators, guaranteeing operation day or night.
7. Patented technology.
8. Two years warranty

Suitable for a wide range of power supply

Solar PV generators;Wind driven generators;Electrical Mains supply;Storage batteries

Diesel Generators (Genset)

Supply voltage

Flexibility with regards to power supply and power range.

the motor can be supplied with either DC or AC voltage:
AC voltage range: 1 x 60 - 300 VAC,50-60Hz
Open circuit voltage: 60-410VOC
Output power range: 0.37 - 3.0Kw for DC
Output power range: 0.37 - 2.2Kw for AC
